Features:
● For Pharmaceutical, Bio-Technology, Cosmetic and Food & Beverage Applications
● Full Port, ISO 5211 Mount Pad
● Multi-Position Lever Handle
● Blow-Out-Proof Stem
● High-Cycle, Live-Loaded Stem Packing
● Balanced 4-Seat Construction
● O-Ring Stem Bearing (3”& 4”)
● Trunnion Mounted Ball (1 1/2”~4”)
● Investment Casting Body and Cap in Stainless Steel
● Basic Construction: ANSI B16.34 & EN 12516-1
● Shell and Seat tested to ANSI B16.34 and API 598
● All Materials: Meet ASTM Material Specifications
● All Soft Wetted Parts: Meet FDA CFR Title 21 Part 177

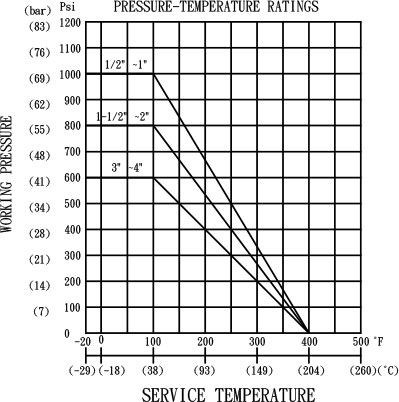

● Temperature Range (TFM): -20ﾟF ~ 420ﾟF
● Maximum Pressure(TFM): 1000 PSI WOG (1/2”~1”) 800 PSI WOG (1 1/2”~2”)600 PSI WOG (3”~4”)
● End Type: Clamp, Tube Butt Weld, Extended Tube Butt Weld, or Compression on request

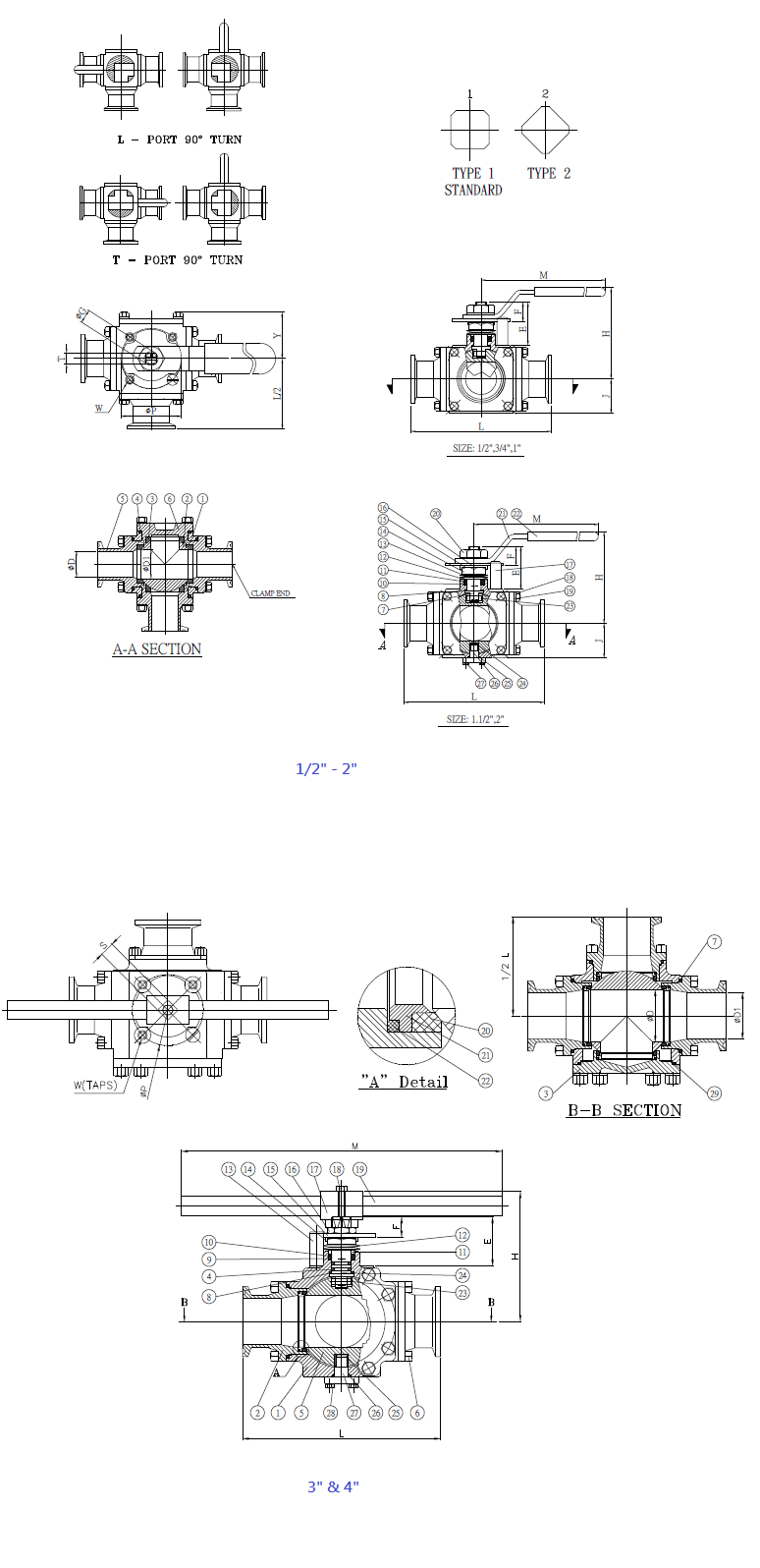

● 4 or 5 way construction with multiple flow patterns
● Finer internal surface finishes available
