Product Description

Features:
● For Chemical and Industrial Applications
● Locking Device & Blow-Out-Proof Stem
● High-Cycle, Live-Loaded Stem Packing
● Investment Casting Body and Cap in Stainless or Carbon Steel
● Basic Construction: ANSI B16.34 & EN 12516-1
● Shell and Seat tested to ANSI B16.34 and API 598
● Temperature Range (RTFE): -20゚F ~ 420゚F
● Maximum Pressure(RTFE): 1000 PSI WOG (1/4”~2”)
                                                  800PSI WOG (2 1/2”~3”)
● End Type: NPT, SW, BW, Flange, RP, Rc, G:
ANSI B 1. 20.1, B16.11, B16.25, B16.5, BS21, DIN 259/2999, ISO 228…etc on request

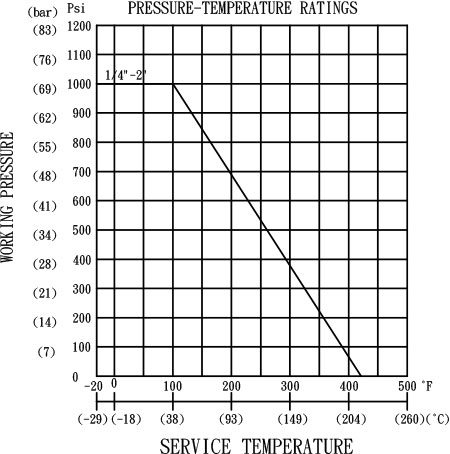

Pressure & Temperature Chart

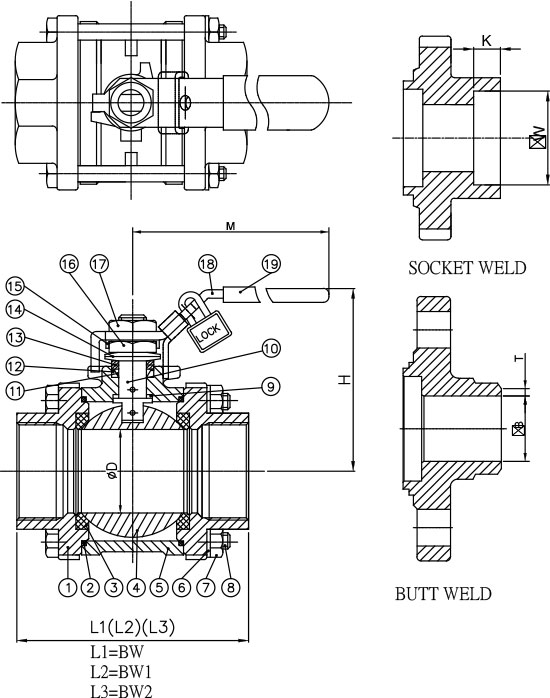

Schematic Diagram

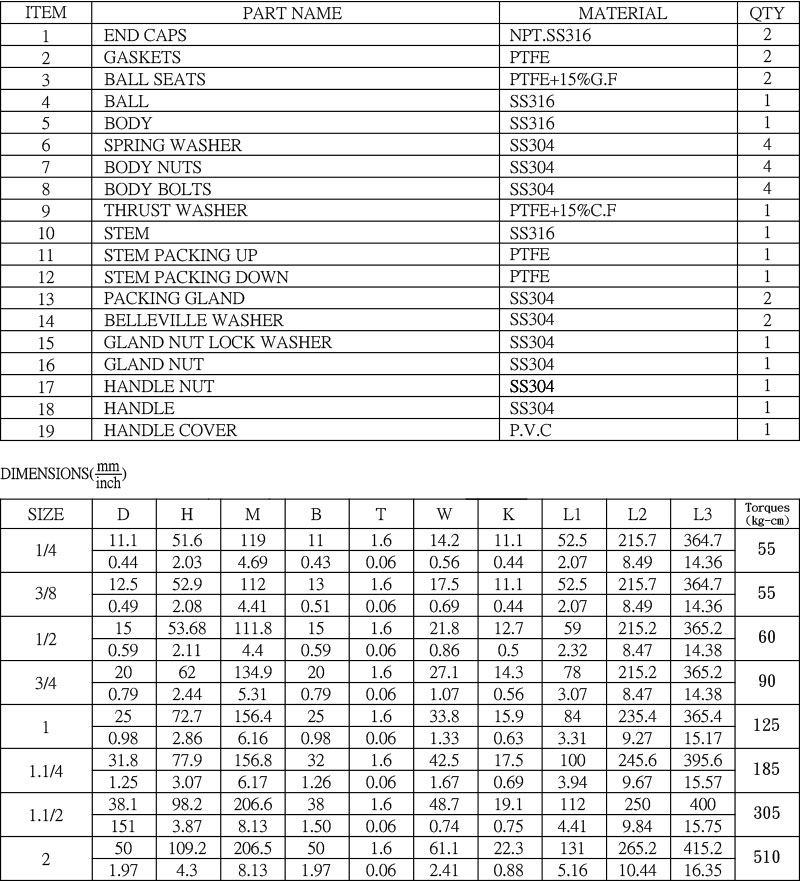

Materials and Measurements
