3-PIECE BALL VALVES
3-Piece Full Port Ball Valve
Product Description
Features:
● For Chemical and Industrial Applications
● Dual pattern ISO 5211 Direct Mount Pad (no bracket or Drive coupling needed for automation)
● Locking Device & Blow-Out-Proof Stem
● High-Cycle, Live-Loaded Stem Packing
● O-Ring Stem Bearing
● Investment Casting Body and Cap in Stainless or Carbon Steel
● Basic Construction: ANSI B16.34 & EN 12516-1
● Shell and Seat tested to ANSI B16.34 and API 598

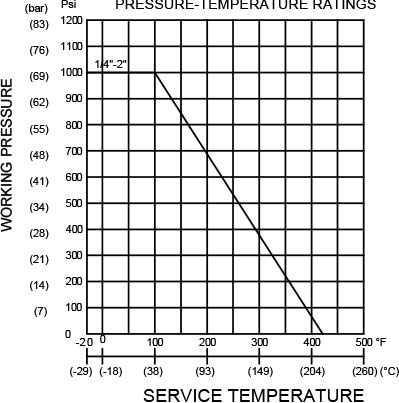

● Temperature Range (RTFE): -20ﾟF ~ 420ﾟF
● Maximum Pressure(RTFE): 1000 PSI WOG (1/4”~2”) 800PSI WOG (2 1/2”~4”)
● End Type: NPT, SW, BW, Flange, RP, Rc, G:ANSI B 1. 20.1, B16.11, B16.25, B16.5, BS21,DIN 259/2999, ISO 228…etc on request
● Anti-Static Device
● For Chemical and Industrial Applications
● Dual pattern ISO 5211 Direct Mount Pad (no bracket or Drive coupling needed for automation)
● Locking Device & Blow-Out-Proof Stem
● High-Cycle, Live-Loaded Stem Packing
● O-Ring Stem Bearing
● Investment Casting Body and Cap in Stainless or Carbon Steel
● Basic Construction: ANSI B16.34 & EN 12516-1
● Shell and Seat tested to ANSI B16.34 and API 598
● Temperature Range (RTFE): -20ﾟF ~ 420ﾟF
● Maximum Pressure(RTFE): 1000 PSI WOG (1/4”~2”) 800PSI WOG (2 1/2”~4”)
● End Type: NPT, SW, BW, Flange, RP, Rc, G:ANSI B 1. 20.1, B16.11, B16.25, B16.5, BS21,DIN 259/2999, ISO 228…etc on request
● Anti-Static Device
