Features:
For Chemical and Industrial Applications
● Locking Device & Blow-Out-Proof Stem
● High-Cycle, Live-Loaded Stem Packing
● Investment Casting Body and Cap in Stainless or Carbon Steel
● Basic Construction: ANSI B16.34 & EN 12516-1
● Shell and Seat tested to ANSI B16.34 and API 598

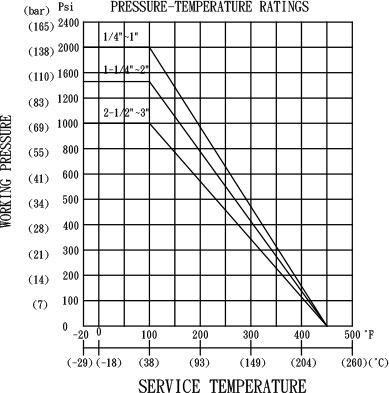

● Temperature Range (RTFE): -20ﾟF ~ 420ﾟF
● Maximum Pressure(RTFE): 2000 PSI WOG (1/4”~1”)
                                                  1500 PSI WOG (1 1/4”~2”)
                                                  800PSI WOG (2 1/2”~3”)
● End Type: NPT, RP, Rc, G: Thread ANSI B 1. 20.1, BS21, DIN 259/2999, ISO 228…etc on request
